Machine Building

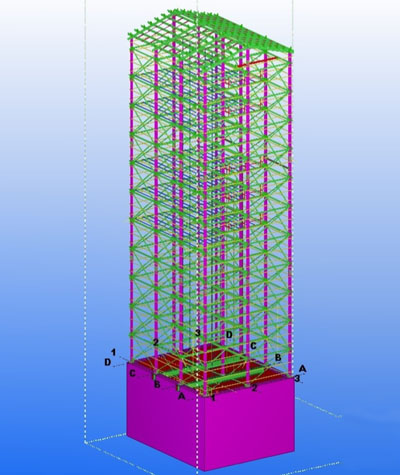

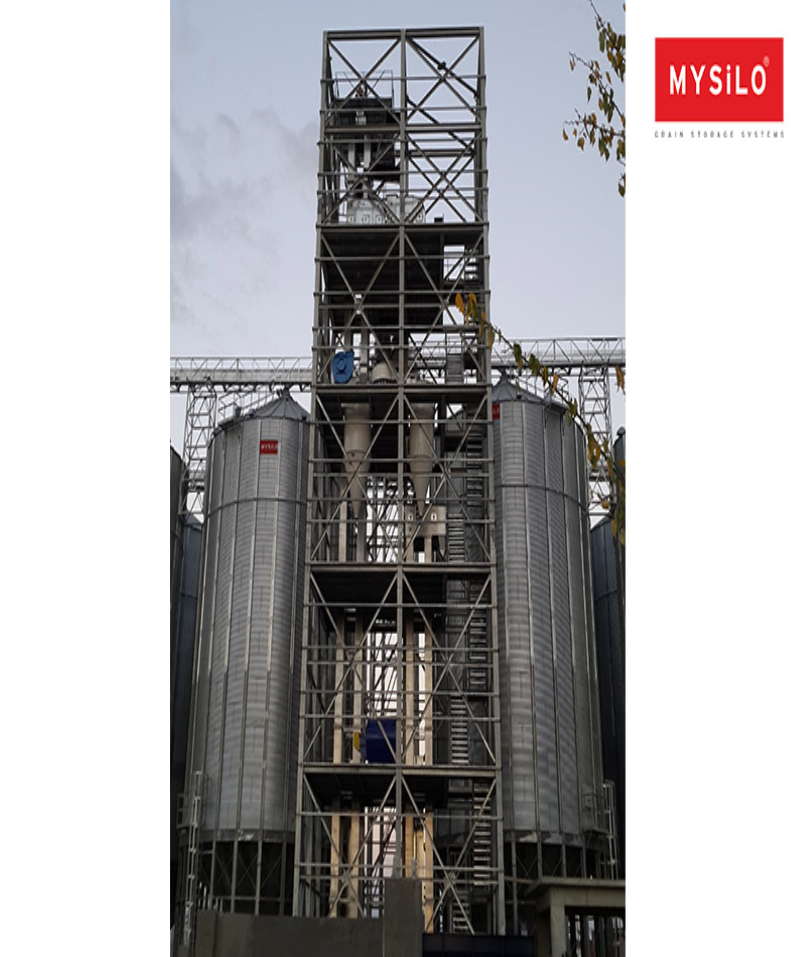

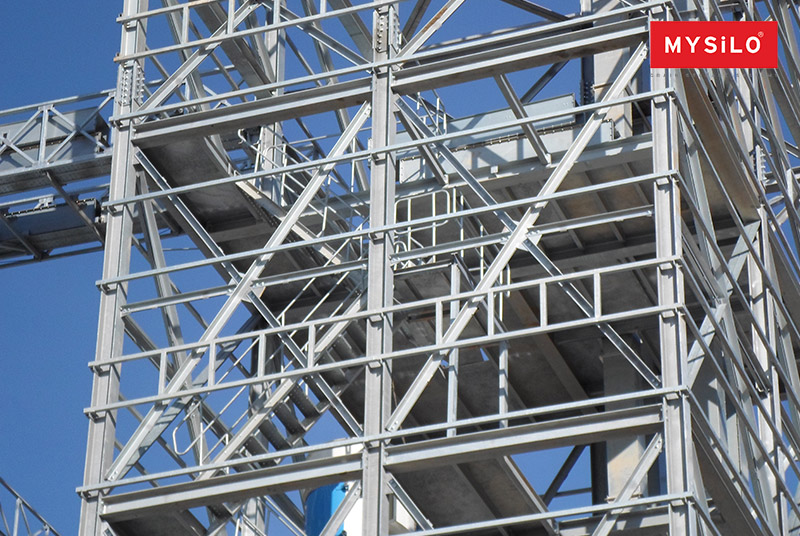

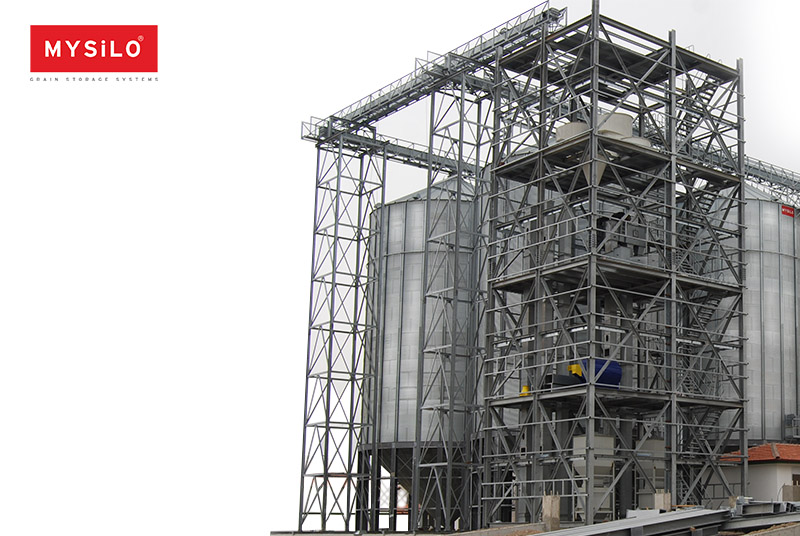

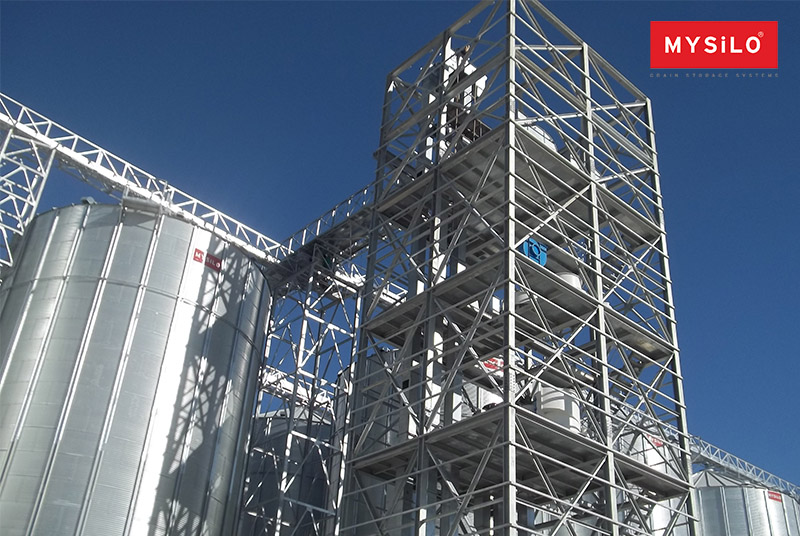

Mysilo machine building is steel construction which includes elevator, tumba scale, distributors and pre-cleaning. Optionally siding is applied.
|
|
| Definition | Specifications |
| Coating | (Painted (RAL-7031 matt grey)&(Hot Dip Galvanized EN ISO 1461 (Min80 µm) |
| Material Specifications | ASTM A36 - S235 JR-S275 JR- S355 JR |
| Seismic | UBC-97 normunda Zone 1- America Uniform Bulding Code(For Turkey zone 5) |
| Snow Load & Dead Load (kg/m2) | * |
| Wind Load (km/s) | * |
| Number of Max Platform (Qua.) | ** |
| Max.Platform Load (kg) | ** |
| Max Cargo Winch Capacity (kg) | ** |
| Max Extra Load (kg) | ** |
| Standard of Design | IBC 2006, ASCE7-05, UBC-97, ASD Load Combinations |
| AISC 2005 Steel Construction Manual -ASD 13. Ed | |
| AISC 2005 Steel Construction Manual -ASD 13. Ed., AWS D1.1 | |
| *Standard values are used according to region. | |
|
**According to design, special work. |
